WHEEL HUB BOLT REPLACEMENT


BHE031133060W01

1. Remove the brake caliper component and disc plate.

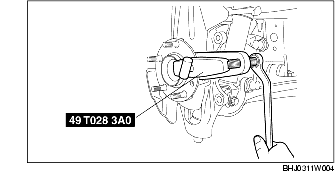

2. Remove the wheel hub bolt using the SST as shown in the figure.

3. Place a new wheel hub bolt in the wheel hub.

4. Install the wheel hub bolt by placing a proper sized washer on the hub, and tightening the nut as shown in the figure.
