A/C UNIT DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER]
BHE071161130W02

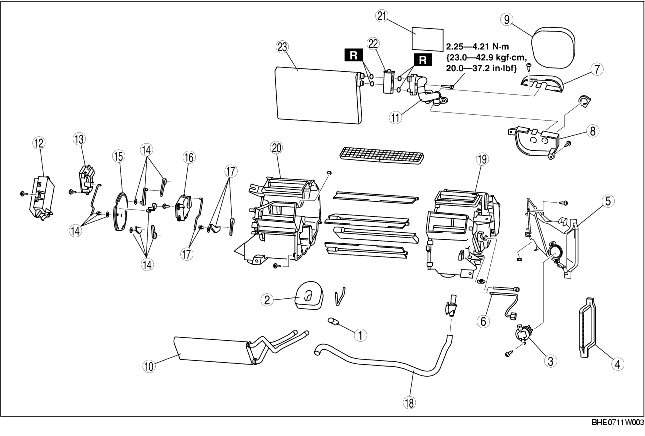

1. Disassemble in the order indicated in the table.
-
Caution
-
• If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.
2. Assemble in the reverse order of disassembly.
|
1
|
Drain hose
|
|
2
|
Polyurethane foam (1)
|
|
3
|
Power transistor
|
|
4
|
Adhesive polyurethane (1)
|
|
5
|
Air duct
|
|
6
|
Evaporator temperature sensor
|
|
7
|
Polyurethane foam (2)
|
|
8
|
Bracket (1)
|
|
9
|
Bracket (2)
|
|
10
|
Heater core
|
|
11
|
Evaporator pipe
|
|
12
|
A/C amplifier
|
|
13
|
Airflow mode actuator
|
|
14
|
Airflow mode link set
|
|
15
|
Airflow mode main link
|
|
16
|
Air mix actuator
|
|
17
|
Air mix link set
|
|
18
|
Air hose
|
|
19
|
A/C case (1)
|
|
20
|
A/C case (2)
|
|
21
|
Adhesive polyurethane (2)
|
|
22
|
Expansion valve
|
|
23
|
Evaporator
|
