TRUNK LID ADJUSTMENT

1. Measure the gap and height difference between the trunk lid and the body.

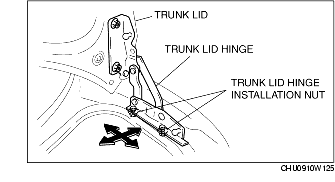

2. Loosen the trunk lid hinge installation nuts or the trunk lid lock striker installation screws, and adjust the trunk lid.

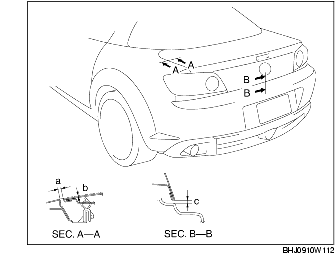

Standard clearance

a: 2.5-4.5 mm {0.10-0.17 in}

b: -1.0-1.0 mm {-0.03-0.03 in}

c: 4.0-8.0 mm {0.16-0.31 in}

3. Tighten the bolts or screws.
