FRONT DOOR LOCK ACTUATOR INSPECTION

BHE091458490W03

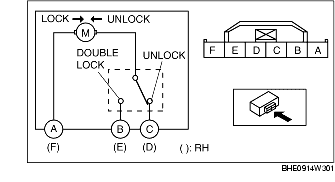

Door Lock Actuator

1. Apply battery positive voltage to the front door lock actuator terminals and inspect the operation of the front door lock actuator.

• If not as specified, replace the front door lock actuator.

Actuator operation

Connection

B+

GND

Lock
A
(F)
C
(D)
Double lock
A
(F)
B
(E)
Unlock
C and B
(D and E)
A
(F)

( )  :
RH

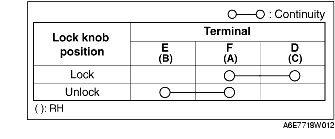

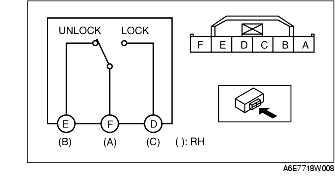

Door Lock-link Switch

1. Inspect for continuity between the door lock-link switch terminals.

• If not as specified, replace the front door lock actuator.

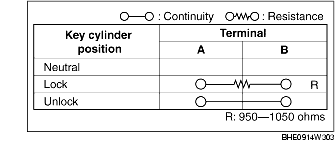

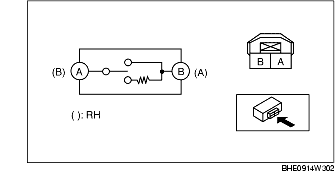

Door Key Cylinder Switch

1. Disconnect the front door lock actuator connector.

2. Inspect for continuity between the door lock-link switch terminals.

• If not as specified, replace the front door lock actuator.
