MAP LIGHT INSPECTION

1. Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

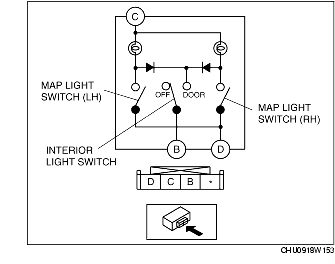

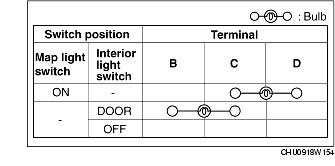

2. Verify that the continuity between the map light terminals is as indicated in the table.

• If not as indicated in the table, replace the map light.
