INSTRUMENT CLUSTER INPUT/OUTPUT CHECK MODE

BHE092255430W05

Note
• In this mode, it is possible to verify the items in the following chart.

Check Code Table

Check code

Check item

Related items

01
Buckle switch
Buckle switch
04
Door switch
• Lights-on reminder warning alarm
• Key reminder warning alarm
• Power door lock system
• Ignition key illumination system
• Interior light control
08
TNS relay
• Lights-on reminder warning alarm
• Each illumination light
12
Speedometer (LCD)
Speedometer
13
Tachometer
Tachometer
14
Buzzer
Buzzer
16
Fuel-level warning light
Fuel-level warning light
18
Ignition key illumination
Ignition key illumination system
22
Fuel gauge sender unit
Fuel gauge
23
Fuel gauge
Fuel gauge
25
Water temperature gauge
Water temperature gauge
26
• Odometer/tripmeter (LCD)
• Warning and indicator light
• Odometer/tripmeter (LCD)
• Warning and indicator light
28
Oil pressure gauge
Oil pressure gauge
31
Key reminder switch
Key reminder warning alarm
55
Dimmer switch (panel light control switch)
Panel light control

Note
• Check codes which are not listed may be indicated, but they cannot be inspected.
• The check codes are displayed in numerical order. (While performing the inspection, if you want to inspect a check code with a number smaller than the code number you are currently inspecting, terminate the check mode then repeat the inspection from the beginning.)
• If a speed signal is input to the instrument cluster (the wheels are rotated) while a code other than check code 50 or 51 is displayed, the input/output check mode will be cancelled.
• The check codes can be fast-forwarded by pushing and holding the odometer/tripmeter switch for 1 s or more.

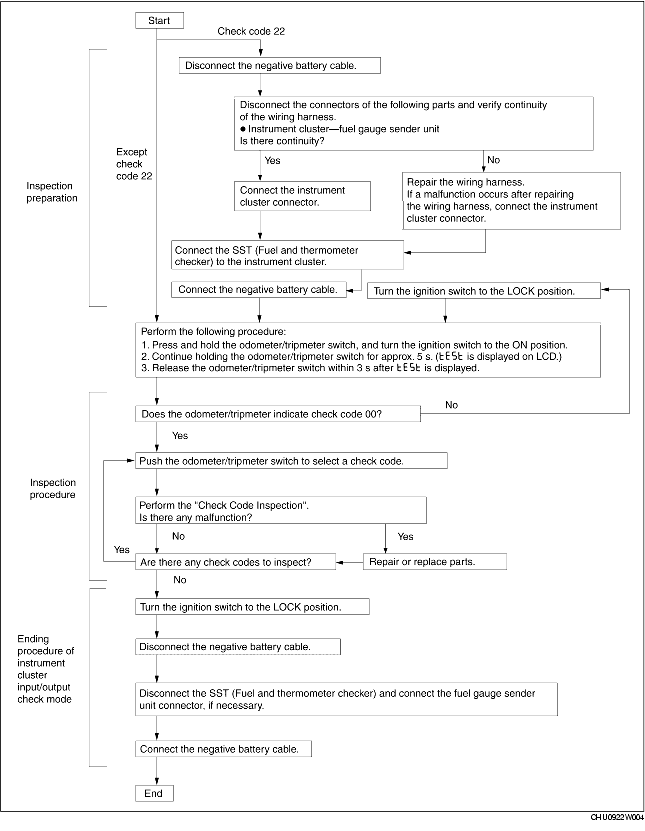

Checking Order

Note
• When inspecting more than two check codes, begin with the code with the highest ranking.

Priority order of inspection

Ignition switch position

Check code

1
ON
22
2
01, 04, 08, 12, 13, 14, 16, 18, 23, 25, 26, 28, 55
3
LOCK
31

Check Code Inspection

Check code 01

Check code 01

Buckle switch ON/OFF signal

STEP

INSPECTION CONDITION

DISPLAY

ACTION

1
Unfasten driver-side seat belt. (Buckle switch on.)

Go to next step.

Measure voltage at instrument cluster terminal 2G.
Is voltage 0 V?
• If as specified, replace instrument cluster.
• If not as specified, inspect following parts.
– Buckle switch
– Wiring harness (Buckle switch-instrument cluster)
2
Fasten driver-side seat belt. (Buckle switch off.)

Measure voltage at instrument cluster terminal 2G.
Is voltage B+?
• If as specified, replace instrument cluster.
• If not as specified, inspect following parts.
– Buckle switch
– Wiring harness (Buckle switch-instrument cluster)

Input signal to instrument cluster is okay.

Check code 04

Check code 04

Door switch ON/OFF signal

STEP

INSPECTION CONDITION

DISPLAY

ACTION

1
Open the front driver-side door. (The door switch is on.)

Close the front driver-side door, then go to the next step.

Verify that the voltage of the instrument cluster terminal 2E is 1.0 V or less.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
– Door switch
– Wiring harness (Instrument cluster-door switch)
2
Close all doors. (Door switches are off.)

Verify that the voltage of the instrument cluster terminal 2E is B+.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
– Door switch
– Wiring harness (Instrument cluster-door switch)

Input signal to the instrument cluster is normal.

Check code 08

Check code 08

TNS relay ON/OFF signal

STEP

INSPECTION CONDITION

DISPLAY

ACTION

1
Turn the headlight switch to the TNS position. (TNS relay ON)

Go to the next step.

Verify that the voltage of instrument cluster terminal 1B is B+.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
– TNS relay
– Wiring harness (Battery-TNS relay-instrument cluster)
2
Turn the headlight switch off. (TNS relay OFF)

Verify that the voltage of the instrument cluster terminal 1B is 1.0 V or less.
•  If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
– TNS relay
– Wiring harness (TNS relay-instrument cluster)

Input signal to the instrument cluster is normal.

Check code 12

Check code 12

Speedometer display signal

INSPECTION CONDITION

DISPLAY

ACTION

Select check code 12.

All segments in the speedometer illuminate.
The speedometer is normal.
Except above
Replace the instrument cluster.

-

Check code 13

Check code 13

Tachometer operation signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 13, wait for approx. 2 s.

The tachometer needle moves full scale then returns to approx. 3,000 rpm .
The tachometer is normal.
Except above
Replace the instrument cluster.

-

Check code 14

Check code 14

Buzzer operation signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 14, wait approx. 2 s.

The buzzer sounds.
The buzzer is normal.
The buzzer does not sound.
Replace the instrument cluster.

Check code 16

Check code 16

Fuel-level warning light flashing signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 16, wait approx. 2 s.

Fuel-level warning light flashes three times.
The fuel-level warning light is normal.
Except above
Replace the instrument cluster.

Check code 18

Check code 18

Ignition key illumination on/off signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 18, wait approx. 2 s.

Ignition key illumination flashes three times.
The ignition key illumination is normal.
Except above
Verify that the voltage of the instrument cluster terminal 1K is B+.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, replace the following parts:'
– Ignition key illumination
– Wiring harness (Battery-ignition key illumination-instrument cluster)

Check code 22

Caution
• While inspecting with check code 22, the measured value is displayed in both odometer and tripmeter segments of the odometer/tripmeter. Verify both readings.

Check code 22

Fuel level signal

STEP

INSPECTION CONDITION

DISPLAY

ACTION

1
Select check code 22 with the fuel gauge sender unit connector disconnected.

Go to the next step.
Except above
Replace the instrument cluster.
2
Connect terminals 2T and 2R, 2T and 2P of the instrument cluster.

Go to the next step.
Except above
Replace the instrument cluster.
3
Using the SST (Fuel and thermometer checker) or resistor, input 80 ohms between instrument cluster terminals 2T and 2R, and 2T and 2P.



Go to the next step.







Except above
Replace the instrument cluster.
4
Using the SST (Fuel and thermometer checker) or resistor, input 160 ohms between instrument cluster terminals 2T and 2R, and 2T and 2P.

Go to the next step.
Except above
Replace the instrument cluster.
5
Using the SST (Fuel and thermometer checker) or resistor, input 240 ohms between instrument cluster terminals 2T and 2R, and 2T and 2P.

Inspect the fuel gauge sender unit.
Except above
Replace the instrument cluster.

Check code 23

Check code 23

Fuel gauge operation signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 23, wait approx. 2 s.

The fuel gauge indicates status in the following order approx. every 2 s.
• F→1/2→E→F (fixed)
The fuel gauge is normal.
Except above
Replace the instrument cluster.

Replace the instrument cluster.

Check code 25

Check code 25

Water temperature gauge operation signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 25, wait approx.2 s.

The water temperature gauge indicates status in the following order approx. every 2 s.
• H→Center→C→H (fixed)
The water temperature gauge is normal.
Except above
Replace the instrument cluster.

Replace the instrument cluster.

Check code 26

Check code 26

Odometer/tripmeter display signal

INSPECTION CONDITION

DISPLAY

ACTION

Select check code 26.

• Display is normal.
• Warning and indicator light (Controlled by CAN system-related module) illuminated.
– Generator warning light
– AT warning light
– DSC indicator light
– DSC OFF light
– ABS warning light
– Brake system warning light
– Cruise control main indicator light
– Cruise control set indicator light
– Selector indicator light
– MIL
– Oil level warning light
– Coolant level warning light
– EPS warning light
– TPMS warning light
– Shift up indicator light
• The odometer/tripmeter is normal.
• Warning and indicator is normal.
Except above
Replace the instrument cluster.

Check code 28

Check code 28

Oil pressure gauge operation signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 28, wait approx. 2 s.

Oil pressure gauge needle is fixed a little above the center of the scale.
The oil pressure gauge is normal.
Except above
Replace the instrument cluster.

Replace the instrument cluster.

Check code 31

Check code 31

Key reminder switch ON/OFF signal

STEP

INSPECTION CONDITION

DISPLAY

ACTION

1
Remove the key from the steering lock, then reinsert the key into the steering lock after selecting check code 31. (The key reminder switch is on.)

Go to the next step.

Verify that the voltage of instrument cluster terminal 2W is B+.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
– Key reminder switch
– Wiring harness (Battery-key reminder switch-instrument cluster)
2
Remove the key from the steering lock. (The key reminder switch is off.)

Verify that the voltage of the instrument cluster terminal 2W is 1.0V or less.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
– Key reminder switch
– Wiring harness (Key reminder switch-instrument cluster)

Input signal to the instrument cluster is normal.

Check code 55

Check code 55

Dimmer switch ON/OFF signal

STEP

INSPECTION CONDITION

DISPLAY

ACTION

1
After selecting the check code 55, turn the panel light control switch toward bright until a click is heard. (Dimmer switch ON)

Go to the next step.

Verify that the voltage of the instrument cluster terminal 2U is B+.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
– Panel light control switch
– Wiring harness (Battery-panel light control switch-instrument cluster)
2
Turn the panel light control switch toward dark until a click is heard. (Dimmer switch ON)

Verify that the voltage of the instrument cluster terminal 2U is 1.0V or less.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
– Panel light control switch
– Wiring harness (Battery-panel light control switch-instrument cluster)

Input signal to the instrument cluster is normal.
