PCM REMOVAL/INSTALLATION


BHE014018880W01

1. When replacing the PCM, perform the following:

• PCM configuration (See PCM CONFIGURATION.)

2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION.)

3. Remove in the order indicated in the table.

4. When replacing the PCM on the vehicles with the immobilizer system, perform the following:

• Immobilizer system component replacement/key addition and clearing (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING.)

5. Install in the reverse order of removal.

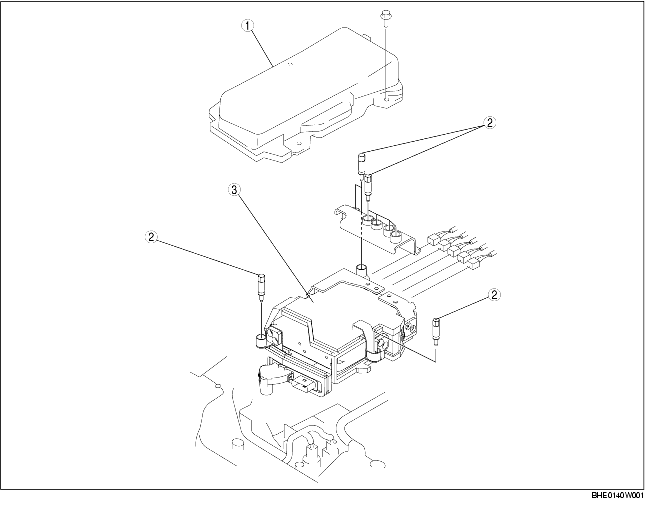

U.K. specs.

1
PCM cover
2
Set bolt
3
PCM component

Set Bolt Removal Note

1. Drill the set bolt using a drill bit with a diameter larger than the shank until the head is removed.

• If the shank is remained, remove it using locking pliers.

2. Clean all foreign material from the PCM connectors.

Set Bolt Installation Note

1. Install a new set bolt and tighten it until the neck of the bolt breaks off.

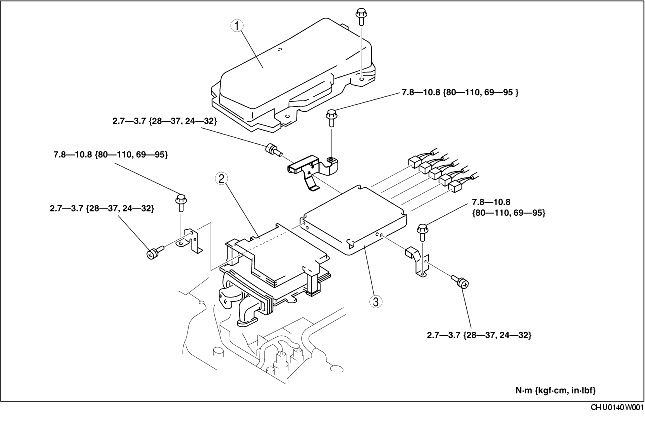

Except for U.K. specs.

1
PCM cover
2
PCM cooler
3
PCM
