Diagnostic procedure
|
STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
INSPECT POWER SUPPLY VOLTAGE USING WDS OR EQUIVALENT
• Turn the ignition switch off.
• Connect the WDS or equivalent to the DLC-2.
• Turn the ignition switch to the ON position (engine off).
• Access B+ PID.
• Is the voltage normal?
|
Yes
|
Malfunction may be temporary. Go to Step 6.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT BATTERY
• Inspect the battery.
(See BATTERY INSPECTION.)
• Is it normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the battery, then go to Step 6.
(See BATTERY REMOVAL/INSTALLATION.)
|
||
|
3
|
INSPECT GENERATOR
• Inspect the generator.
(See GENERATOR INSPECTION.)
• Is it normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the generator, then go to Step 6.
|
||
|
4
|
INSPECT WHETHER MALFUNCTION IS CAUSED BY POOR CONNECTION OF EPS CONTROL MODULE OR PIN DEFORMATION
• Turn the ignition switch off.
• Inspect connection of the EPS control module and wiring harness.
• Disconnect the EPS control module connector.
• Inspect whether malfunction is caused by bent or poorly connected EPS control module connector pin.
• Are the connector connection, connector pins, and wiring harness normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the malfunction connector wiring harness, then go to Step 6.
|
||
|
5
|

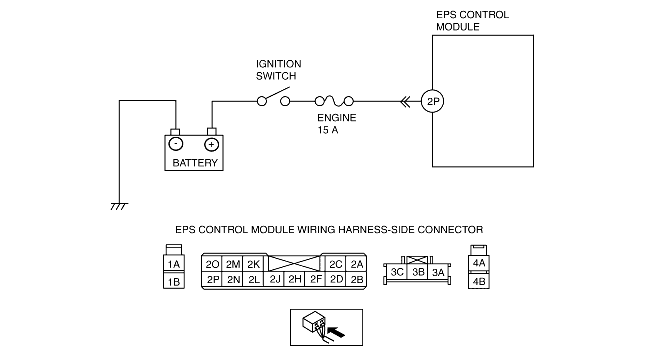

INSPECT EPS CONTROL MODULE POWER SUPPLY CIRCUIT FOR SHORT TO GROUND
• Disconnect the battery positive terminal.
• Inspect for continuity between EPS control module terminal 2P and ground.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for short to ground between EPS control module terminal 2P and ground, then go to Step 6.
|
|
No
|
Go to the next step.
|
||
|
6
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the memory.
(See Clearing DTCs Procedure.)
• Turn the ignition switch off.
• Start the engine.
• Is the same DTC present?
|
Yes
|
Replace the EPS control module, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
7
|
VERIFY AFTER REPAIR PROCEDURE
• Are any other DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC Table.)
|
|
No
|
DTC troubleshooting completed.
|
||
