1. Disconnect the negative battery cable.
2. Detach clips A and remove the upper panel.

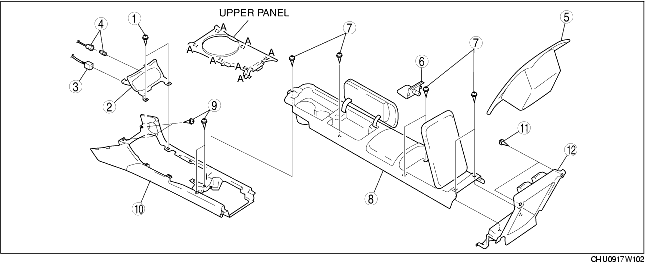

3. Disassemble in the order indicated in the table.
|
1
|
Screw A
|
|
2
|
Ashtray panel (SeeAshtray Panel Removal Note)
|
|
3
|
Cigarette lighter connector
|
|
4
|
Ashtray illumination (SeeASHTRAY ILLUMINATION BULB REMOVAL/INSTALLATION)
|
|
5
|
Storage compartment
|
|
6
|
Hole cover
|
|
7
|
Screw B
|
|
8
|
Rear console
|
|
9
|
Screw C
|
|
10
|
Front console
|
|
11
|
Screw D
|
|
12
|
Under cover
|
4. Install in the reverse order of removal.
1. Remove the ashtray panel using a flathead screwdriver wrapped with protective tape.
